RHODUNA® 470 Black Rhodium Electrolyte

Abrasion-resistant and crack-free dark coatings

RHODUNA® 470 Black adds a superior final layer to jewellery with a thickness up to 0.3 μm. The layer persuades with good corrosion resistance. The electrolyte is perfectly suited for applications where black ruthenium cannot fulfill the requested abrasion requirements.

The black rhodium electrolyte produces crack-free coatings, even at high layer thickness. The darkness can be adjusted. On the basic substrate, pre-gold plating or a pre-plating with rhodium is recommended.

It is absolutely essential to post-treat black rhodium-plated goods in RHODUNA® 470 Black Post Treatment for proper wear resistance and achieving a tarnish free surface.

Electrolyte characteristics

Electrolyte type

Acidic

Metal content

2 (1.8 - 2.2) g/l Rh

pH value

< 1

Operating temperature

35 (30 - 40) °C

Current density range

2 (1 - 3) A/dm²

Plating speed

0.045 μm/min at 2 A/dm²

Anode material

Pt-Ti (type PLATINODE® Pt/Ti)

Coating characteristics

Coating

Rhodium

Colour of deposit

L*= approx. 63 (Anthracite) to L*= approx. 50 (Black) to
L*= approx. 45 (Deep Black)

Max. coating thickness

Approx. 0.3 μm

Abrasiveness Unassigned

Depending on degree of blackening excellent to fair

Advantages

  • Perfect electrolyte for dark to black decorative layers
  • High abrasion resistance
  • Layer thickness up to 0.3 μm possible
  • Suitable for rack

Applications

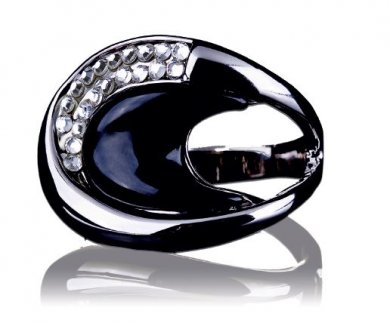

  • Jewellery
  • Watches
  • Spectacle frames
  • Writing instruments
  • Accessories
